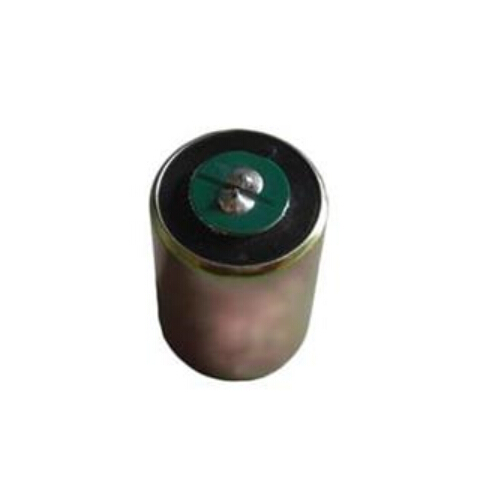

4.5Hz Geophone Element S10045
Geophone ELement
Enquiry about 4.5Hz Geophone Element S10045
（Temperature Range: 20℃±2℃）
| TYPE | S10045-V & H |
| Natural Frequency (Hz) | 4.5±10% |
| Coil resistance (Ω) | 375±5% |
| Damping | 0.6±10% |
| Open circuit intrinsic voltage sensitivity (v/m/s) | 28.8 v/m/s ±7.5% |
| Harmonic distortion (%) | ≦0.2% |
| Moving Mass (g) | 11.3g |
| Typical case to coil motion p-p(mm) | 4mm |
| Operating Temperature Range(℃) | -40℃ TO +70℃ |
| Height (mm) | 36mm |
| Diameter(mm) | 25.4mm |
